[딥러닝] 사용자 데이터로 CNN 학습하기- 3. 수집한 이미지 출력해보기

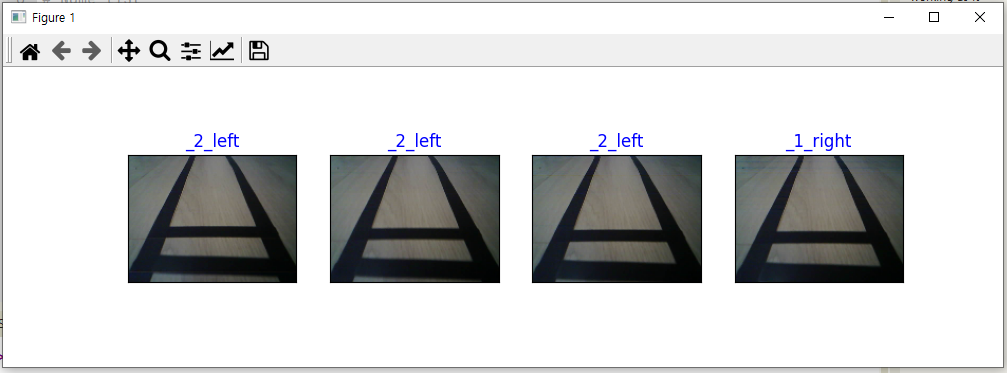

3. 수집한 이미지 출력해보기



_04_cnn_training_2.py

from _04_cnn_training_1 import *

import cv2
import matplotlib.pyplot as plt

# Name list
names=['_0_forward','_1_right','_2_left','_3_stop']

def display_images(img_path, ax):
    img=cv2.imread(os.path.join(dirname,img_path))
    ax.imshow(cv2.cvtColor(img,cv2.COLOR_BGR2RGB))

fig=plt.figure(figsize=(10,3))
for i in range(4):
    ax=fig.add_subplot(1,4,i+1,xticks=[], yticks=[])
    ax.set_title(names[targets[i+4]], color='blue')
    display_images(files[i+4],ax)

plt.show()
